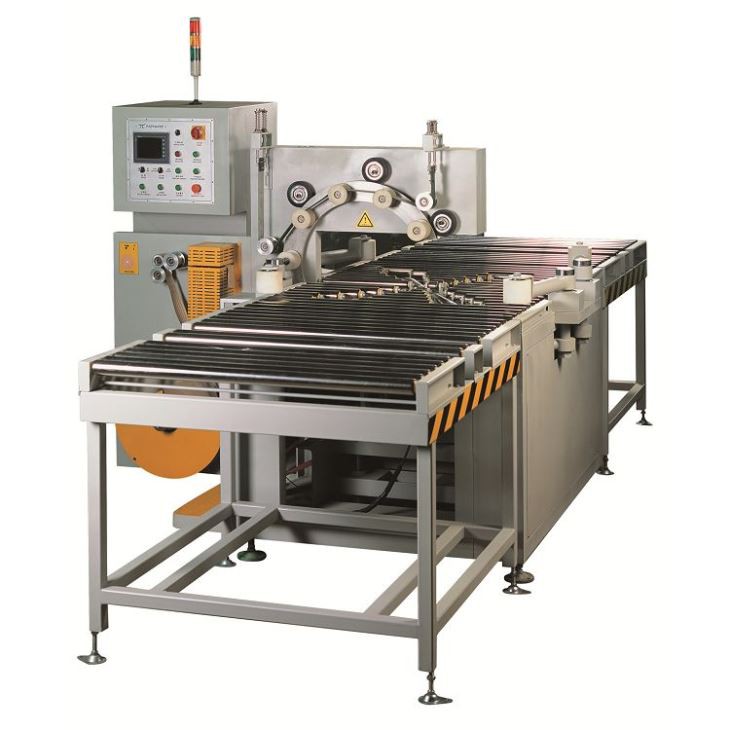

Copper Strip Wrapping Machine

With an aim to fulfill varied requirements of our valued clients, we are engaged in offering the high performance copper strip wrapping machine which is applied for automatic packing a wide range of copper strips in horizontal state, to make the copper strip well-protected from influence of water, dust, rust, etc. with high efficiency and nice packaging for saving material and labor cost.

Send Inquiry

Description

COPPER STRIP WRAPPING MACHINE

MACHINE APPLICATION:

BASIC FEATURES:

*Automatic or semi-auto control can be chose according needs.

*With motor driven powered roller conveyor for automatic loading&offloading of the copper coils.

*High anti-friction PU adopted for friction wheels; whole casting structure for turning ring.

*The level height of turning ring is adjustable, suit for different diameter.

*Synchronous wrapping system can be chose for wrapping two different material at one operation process.

*The supportive and protective rollers wrapped by PU.

*Special tension control system, the tension and overlapping rate of packing material can be adjusted according to needs.

*Central positioning for best packaging performance.

*Different packing material can be chose.

MAIN PARAMETERS:

Model	GW200-N	GW200-W
Coil OD	600-1200mm	600-1200mm
Coil ID	≥400mm	≥400mm
Coil width	≤200mm	≤200mm
Coil weight	≤300KG	≤500KG
Cutting type	Manual cutting	Auto cutting
Ring speed	About 70r/min	About 80r/min
Wrapping material	knit tape, compound paper tape,stretch film, non-woven fabrics,etc	knit tape,compound paper tape, etc
Material width	100-120mm	80-100mm
Material OD	200mm	450mm
Material ID	55mm	55mm
Power output	1.5KW	2.2KW
Power supply	AC/380V	AC/380V
Air supply (6-8kgf/cm²)	Without	With
Circular labeling system	Optional	Optional
Synchronous wrapping system	Optional	Optional

Note: the datas are only for reference, the machine can be custom designed according to specific object size.

OPERATION:

The automatic coil wrapping machine includes: powered feeding conveyor, automatic wrapping station, powered discharging conveyor. Operation process is as follow:

*Load coil by manual or automatically from the front end of production station to the feeding conveyor of the packing machine.

*The conveyor transferred the coil to the wrapping station automatically.

*Automatic coil centering.

*Automatic coil wrapping.

*Automatic cutting the wrapping material.

*The packed coil is transferred out from the wrapping station.

*Move the coil away from the machine and ready for next packaging.
