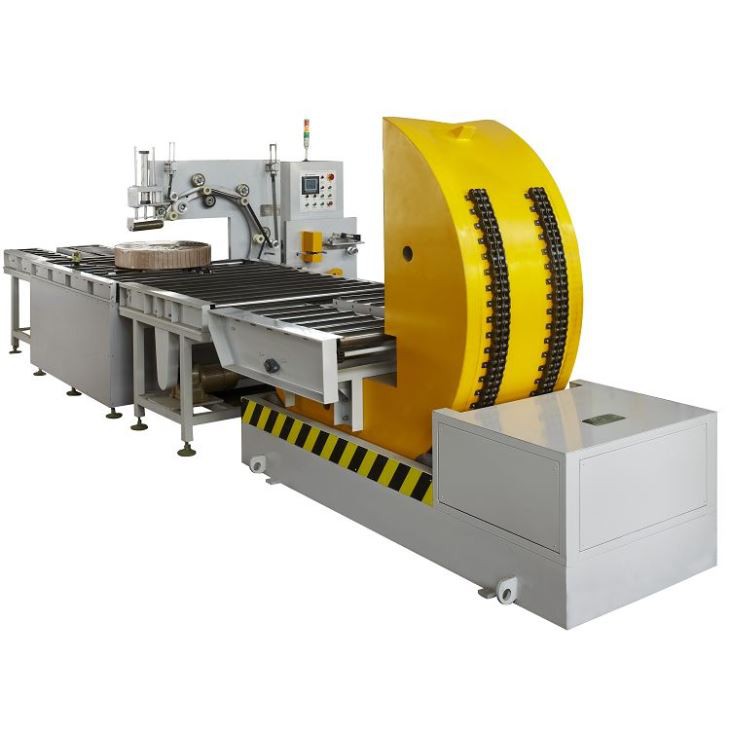

Copper Strip Packing Machine
Backed by our years of industry experience, we are engaged in presenting an excellent quality of copper strip packing machine for protective and effective coil packing. The machine can also be equipped with a coil tilter at the front end or connect with the production line to be an integrated online packing device.
Description
COPPER STRIP PACKING MACHINE
MACHINE APPLICATION:
Backed by our years of industry experience, we are engaged in presenting an excellent quality of copper strip packing machine for protective and effective coil packing. The machine can also be equipped with a coil tilter at the front end or connect with the production line to be an integrated online packing device.
BASIC FEATURES:
*Wrapping station form: On line conveying the object.
*PLC control and HMI operation.
*Supportive rollers lifting the coil from conveyor for wrapping.
*Automatic positioning makes the coil stop at the specific positions for wrapping.
*Automatic coil centering for packaging.
*Both Manual and Auto working mode can be choose for flexible operation.
*Frequency control of motor speed, material overlapping rate can be adjusted according different requirements.
*Different wrapping requirements can be achieved by setting the corresponding parameters in the PLC.
*The wrapping material is cut automatically.
*Indicator alarms automatically when trouble occurs.
*Novel design, material tension could be adjusted automatically.
*Separate electrical cabinet adopted makes operation & maintenance easier.
*Conveyor length can be made according to needs.
MAIN PARAMETERS:
Model | GW300-N | GW300-W |
Object OD | 600-1200mm | 600-1200mm |
Object ID | ≥400mm | ≥400mm |
Object width | ≤300mm | ≤300mm |
object weight | ≤300KG | ≤500KG |
Cutting type | Manual cutting | Auto cutting |
Ring speed | Appr.70r/min | Appr.80r/min |
Packing material | Plastic knit tape, crepe paper tape,stretch film, non-woven fabrics,etc | Plastic knit tape,crepe paper tape, etc |
Material width | 100-120mm | 80-100mm |
Material OD | 200mm | ≤450mm |
Material ID | 55mm | 55mm |
Power output | Approx. 1.5KW | Approx. 2.2KW |
Power supply | AC/380V/50Hz | AC/380V/50Hz |
Air supply (6-8kgf/cm2) | Without | With |
Circular labeling system | Option | Option |
Synchronous wrapping system | Option | Option |
Tilting device | Option | Option |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
SUPPLY LIST：
No. | Items | Quantity |
1 | In feeding conveyor | 1 set for each |
2 | Wrapping machine | 1 set for each |
3 | Out feeding conveyor | 1set for each |
4 | Electrical cabinet, guardrail etc. | 1set for each |
5 | PLC&HIM program control system | 1set for each |
