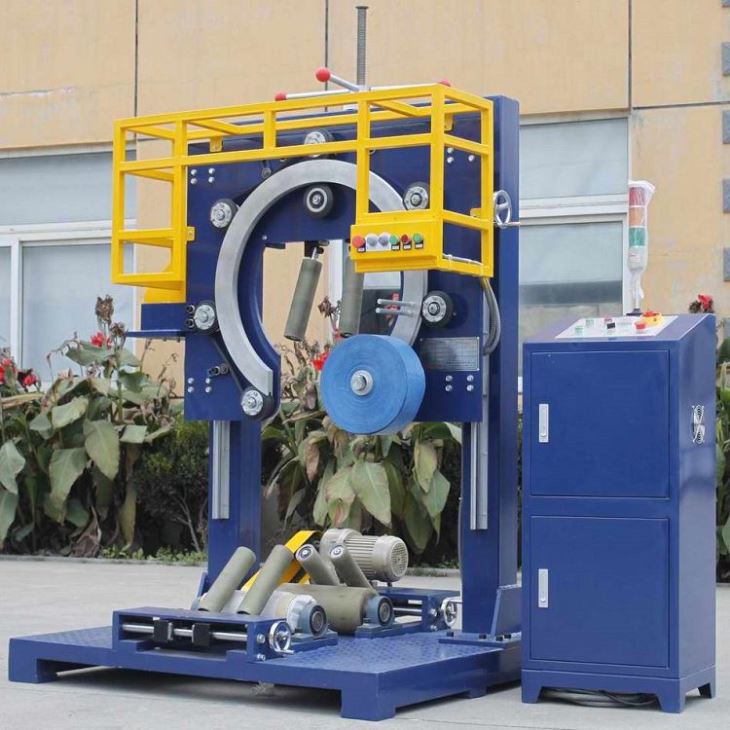

Steel Wire Coil Packing Machine
The steel wire coil packing machine is designed by Jinglin for automatic packing needs of different wire objects including steel wires, galvanized wires, stainless steel wires, copper wires, binding wires and other type of wires which helps the modern industry to greatly improve the packing efficient and save labor cost.
Description
STEEL WIRE COIL PACKING MACHINE
APPLICATION:
The steel wire coil packing machine is designed by Jinglin for automatic packing needs of different wire objects including steel wires, galvanized wires, stainless steel wires, copper wires, binding wires and other type of wires which helps the modern industry to greatly improve the packing efficient and save labor cost.
FEATURES:
1. PLC adopted for automatic wrapping control.
2. Different vertical or horizontal structure chose for different objects or according to special requirement.
3. Automatic or semi-auto control mode for the steel wire coil packing machine.
4. Two modes of tape wrapping structure available for using different wrapping material.
5. Anti-wear polyurethane adopted for the friction wheel, ring with integral mould structure.
6. Ring height could be adjusted for different object ID&OD.
7. Synchronous wrapping (two kinds of wrapping material working together) is available.
8. Wrapping material available: woven belt、stretch film、non-woven fabrics、plastic tape、compound paper tape、sackcloth tape etc.
9. Special tension control system adopted; the overlap rate and material tension could be adjusted according to needs.
10. The carrier roller and protective roller can be rubber wrapped according to needs.
TECHNICAI DATA:
ITEMS | GS200 | GS300 | GS500 |
Object OD | 500-800 mm | 500-1000mm | 600-1200mm |
Object ID | ≥200mm | ≥300mm | ≥400mm |
Coil height | ≤200mm | ≤300mm | ≤500mm |
Coil weight | ≤100KG | ≤500Kg | ≤1000kg |
Roller speed | 2-4m/min | 2-4m/min | 2-4m/min |
Ring speed | Approx 20-80r/min | Approx 20-80r/min | Approx 20-80r/min |
Applicable material | Compound paper/woven tape /stretch film/etc. | Compound paper/woven tape /stretch film/etc. | Compound paper/woven tape /stretch film/etc. |
Wrapping material size | Width:60-100mm Roll OD:100mm; Roll ID:50mm | Width:100-150mm Roll OD:150mm; Roll ID:50mm | Width:100-150mm Roll OD:150mm; Roll ID:50mm |
Power output | About 1.0kw | About 3.0kw | About 4.5kw |
Power voltage | AC/380V/3phase 5wires | AC/380V/3phase 5wires | |
optional | optional | optional | |
Labeling device | optional | optional | optional |
Synchronous wrapping device | optional | optional | optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
SALES SERVICE AVAILABLE:
PRE-SALES SERVICE:
*Product inquiry and consulting support.
*Customized packing solution offered.
*Product sample testing support.
*Factory visiting and technical discussion available.
AFTER-SALES SERVICE:
*One year warranty, lifelong technical assistance and support.
*Engineers available to service machine overseas for installation&commissioning.
*Response any problems within 24hours.
