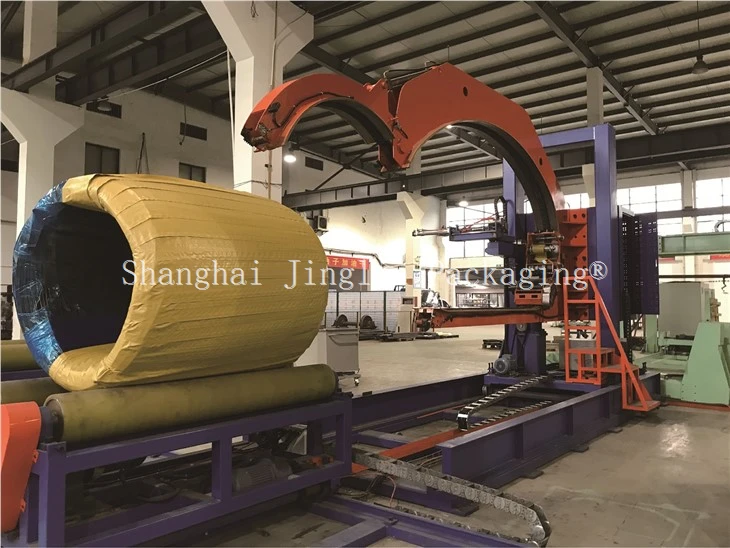

Wide-width Aluminum/Steel Coil Wrapper Packing Machine
1.Application This machine can be used to conduct relatively closed packaging for different dimensions of metal coils or coiled unpackaged objects, such as aluminum coil steel coil, steel belt so as to play a role of anti-rust, waterproof, dustproof, anti-damage and anti-aging etc. The packing...
Description
1.Application
This machine can be used to conduct relatively closed packaging for different dimensions of metal coils or coiled unpackaged objects, such as aluminum coil steel coil, steel belt so as to play a role of anti-rust, waterproof, dustproof, anti-damage and anti-aging etc.
The packing material mating with this machine can be LLDPE stretch film， VCI stretch film and PE film.
2.Basic composition
The machine is mainly composed of the wrapping machine,packing station, track, PLC&HMI, guardrails&etc
3.Scope of application
|
Product |
Aluminum coil, steel coil, wire coil, etc |
|
OD |
1000-2400mm |
|
ID |
600-800mm |
|
Width |
800-1800mm |
|
Weight |
1000-35000kg |
|
Packing material |
LLDPE stretch film, VCI film, PVC, etc |
|
Packing material size |
OD: 100-200mm, ID: 76mm, Width: 200mm, Thickness: 20-60micron |
|
Packing material overlap |
10-90% |
|
Shuttle speed |
1-3m/min |
|
Roller speed |
2-4m/min |
|
Hydraulic pressure |
140bar |
|
Air supply |
6-8kgf/cm2 |
|
Power votage |
About 20kw |
|
Control votage |
24V |
|
Power supply |
220V/380V/415V, 50HZ/60HZ |
