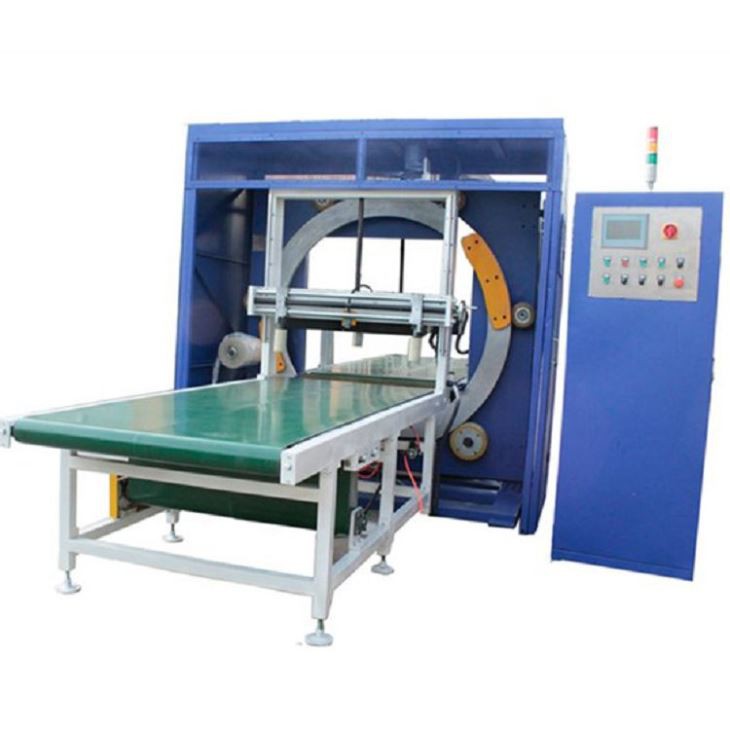

Furniture Wrapping Machine
The function of the furniture wrapping machine is to pack doors, panels, boards, windows, cabinets and other horizontal furniture automatically by protect film or other materials, to make the furniture well protected from dust, water, rust and othe scratches and corrosion. The machine is control by PLC, The machine can be abutted the production line, and mounted on flat and/or hard ground.
Description
MACHINE APPLICATION:
The function of the furniture wrapping machine is to pack doors, panels, boards, windows, cabinets and other horizontal furniture automatically by protect film or other materials, to make the furniture well protected from dust, water, rust and othe scratches and corrosion. The machine is control by PLC, The machine can be abutted the production line, and mounted on flat and/or hard ground.
BASIC FEATURES:
1) PLC control system ad HMI screen operation is adopted.
2) Automatic error alarming.
3) Friction structure for safe, steady and strong operation
4) Automatic object tracking, precise positioning, convenient and safe for operation.
5) Special tension adjust system ensures uniform tension of the packing material.
6) Mechanical hand available for automatic wrapping material feeding and cutting, safe and efficient.
7) The protective rollers are wrapped by polyurethane, can well protect the object from scratches.
8) Soft start and soft stop ensure safe operation.
9) Independent control cabinet, convenient for operation and maintenance.
10) The conveyor length can be customized according needs.
MAIN PARAMETERS:
Model | GG1200 | GG1600 |
Work mode | Auto/manual | Auto/manual |
Section diameter of object | ≤1200mm | ≤1600mm |
≥1000mm | ≥1000mm | |
Max packing weight | 10-500kg | 10-500kg |
Ring speed | 10-90r/min | 10-90r/min |
Conveyor length | 6000mmX2 (or custom) | 6000mmX2 ((or custom) |
Conveyor speed | 0-12m/min | 0-12m/min |
Packing material | Stretch film/knit tape/compound paper tape Core OD:100-250mm, Core width:100-200mm | Stretch film/knit tape/compound paper tape Core ID:50mm/76mm, Core OD:100-250mm, Core width:100-200mm |
Power output | Appr.2.0kw | |
Ring start/stop type | soft start/soft stop | |
Air supply | 6-8kgf/cm2 | 6-8kgf/cm2 |
Supply voltage | AC380V/50HZ | AC380V/50HZ |
MACHINE SUPERIOR FEATURES
1. Long service life
2. Reinforcing aluminum cast-solid ring
3. Nice and firm package is both for transportation and selling.
4. Be capable of connecting to online operation
5. High efficiency
6. Wide range of applicability
7. Extremely low cost of consumables and energy
8. Machine operating at low noise level
9. Short installation times required
10. Extremely low cost of consumables and energy
11. Easy operation and maintenance
12. Exquisite Technology
13. Conform to CE & ISO guidelines.
