Pallet Stretch Wrapping Machine
The pallet stretch wrapping machine has been widely used in outside wrapping for the modern enterprise, the main purpose of the machine is keeping the goods in a good condition against water, dirt and stained, etc, it helps to save you labor cost and improve packing efficiency by applying your stretch wrap consistently load after load. Beside the automatic type, Jinglin also offer the semi-auto control for option.
Description

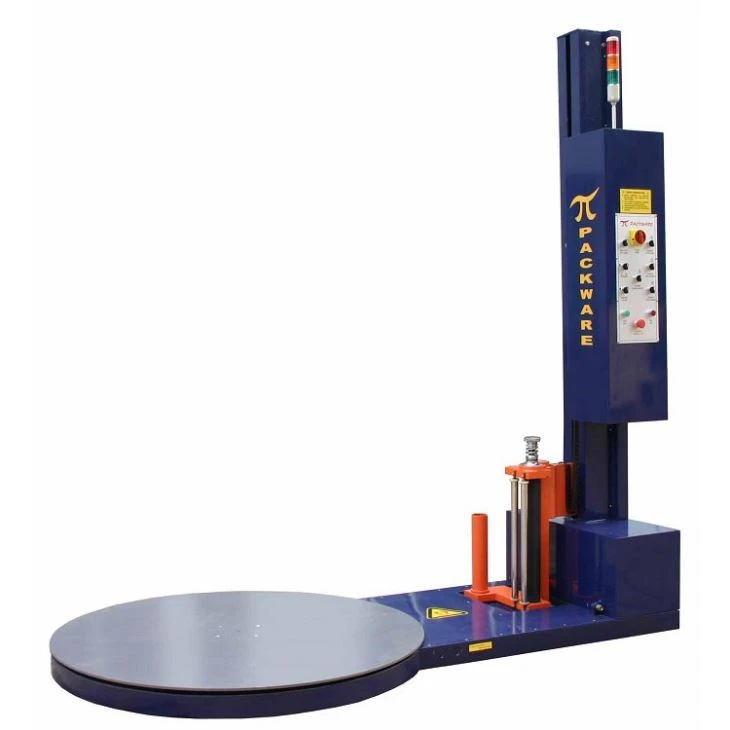

PALLET STRETCH WRAPPING MACHINE
The pallet stretch wrapping machine has been widely used in outside wrapping for the modern enterprise, the main purpose of the machine is keeping the goods in a good condition against water, dirt and stained, etc, it helps to save you labor cost and improve packing efficiency by applying your stretch wrap consistently load after load. Beside the automatic type, Jinglin also offer the semi-auto control for option.
MAIN PARAMETERS:
*Simple design, easy for operation and maintenance.
*Manual operation, flexible& economical.
*Can start、stop、reset freely.
*Can set packing position reinforcement at random.
TECHNICAL PARAMETERS:
Item\data | JL2100-J(semi-auto) |
Working mode | Semi-auto |
Turntable motor | 0.40KW |
Up-down motor | 0.37KW |
Turntable speed | 11r/min(adjustable) |
Film carriage speed | 2.9m/min |
Turntable diameter | 1500mm |
Turntable height | 110m |
Tension control | Mechanical |
Height control | Manual |
Turntable start\stop mode | Soft start & Soft stop |
Max load weight | 1500KG |
Max load height | 1800mm |
Wrapping material | Stretch film ID76mm,width:500mm |
Power voltage | AC 380V/50HZ |
Gross weight | About 550kg |
About 4cbm |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
