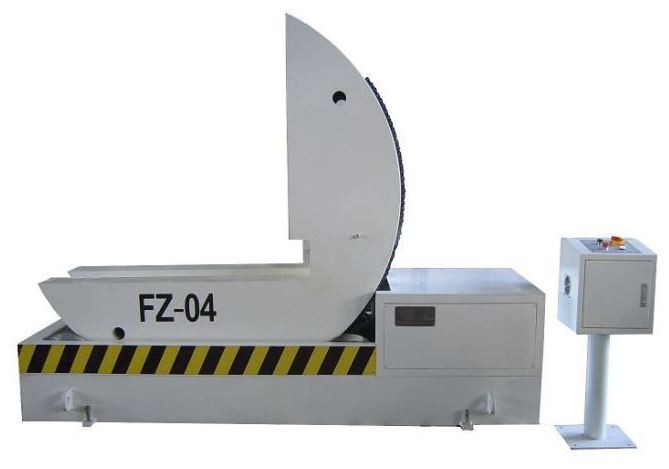

China Factory 90 Degree Turnover Machine Coil Turnover Machine Customized Product

Coil tilter is used for tilting heavy objects with different specifications for 90 degree. It’s widely used in industries of metallurgy, stamping, metal plate, mould, paper making, steel strip, coil, barrels, and etc. High efficient working, safe and reliable. The machine shall be mounted on flat & hard ground, where the ground load should be more than 1 ton/m2. Also we accept OEM customized,such as max load weight and color,size etc. Our factory have more than 20 years' experience in designing and manufacturing all kinds of packing machines. We provide packing solution according to customers' demands and needs.

Description

MAIN PARAMETERS:


Item

FZ-06

Max loading

6T

One-way turn-over   speed

Approx. 30s

Transfer mode

Mechanical

Power output

1.5KW

Working mode

Manual switch/ remote   control

Product width

600 mm

Product diameter

1500mm

Product weight

Within 6000kg

Dimension

Approx. L2200mm/W1000/H1700mm


Power voltage

AC 380V, 3 phase5wires

Note: the data are only for reference, the machine can be custom designed according to specific object size.

turnover machine

Scope Of Supply:

No.

Items

Quantity

1

Tilter Structure

1 set for each

2

Hydraulic working   station.

1set for each

3

Electrical control   cabinet

1set for each

4

Spare parts,manual

1set for each
