Factory Price Turnover Machine Mold Turnover Machine Coil Tilter video

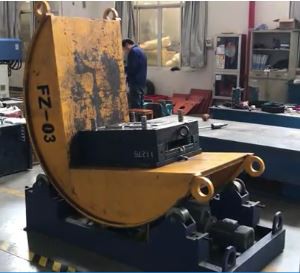

Factory Price Turnover Machine Mold Turnover Machine Coil Tilter

The FZ-03 coil tilter is used for tilting heavy objects with different specifications for 90 degree with max loading capacity 3tons. It’s widely used in industries of metallurgy, stamping, metal plate, mold, paper making, steel strip, coil, barrels, and etc. High efficient working, safe and reliable.

Send Inquiry

Description

Technical Data:


Item

FZ-03

Max loading

3T

One-way turn-over   speed

Approx. 30s

Transfer mode

Mechanical

Power output

1.5KW

Working mode

Manual switch/ Remote   control

Product width

600 mm

Product diameter

1500mm

Product weight

Within 3000kg

Dimension

Approx. L2200mm/W1000/H1700mm

Power voltage

AC 380V  3 phase 5wires



Note: the data are only for reference, the machine can be custom designed according to specific object size.
