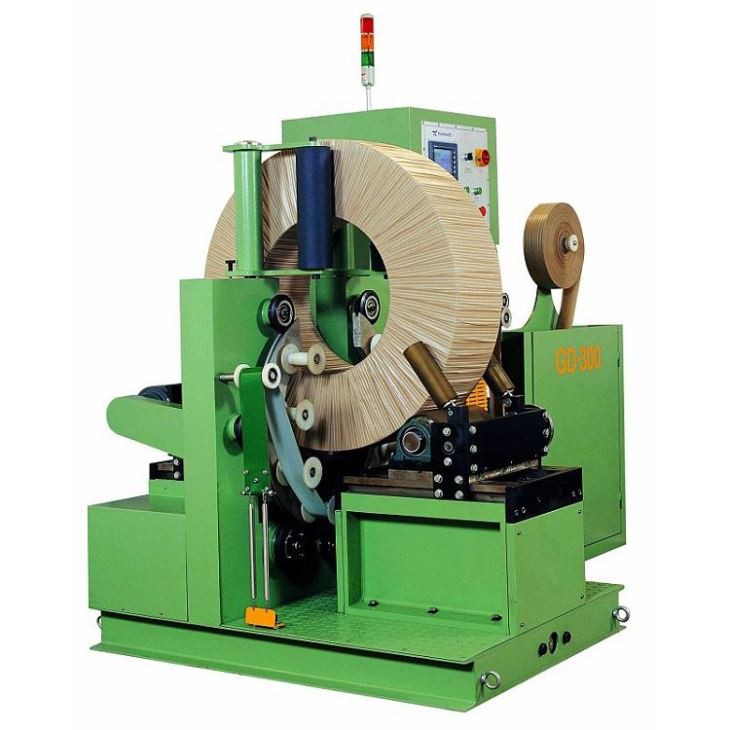

Bearing Wrapping Machine
With 20 years professional experience in packing machine, Jinglin provides a complete packing solutions with high quality and rich functions for bearing industries. We are able to design the machine totally based on the user’s bearing size and special requirements to gain the best packing performance and to help our customers improve the competitiveness in bearing field.
Description
BEARING WRAPPING MACHINE
With 20 years professional experience in packing machine, Jinglin provides a complete packing solutions with high quality and rich functions for bearing industries. We are able to design the machine totally based on the user’s bearing size and special requirements to gain the best packing performance and to help our customers improve the competitiveness in bearing field.
BASIC FEATURES:
1. Excellent configurations with high quality brands for main components.
2. Top opening structure enable the bearings be loading from the top.
3. PLC program is adopted for automatic control.
4. The height of the ring can be adjusted when the bearing diameter changes.
5. Both the ring and roller speed could be adjusted by converters.
6. The overlap degree of the wrapping material is adjustable through the converters.
7. Soft start, soft stop and precise reset of the ring.
8. Durable high antifriction Poly Urethane adopted for friction wheels.
9. Solid whole casting structure for turning ring.
10. The rollers are wrapped by PU to protect the products.
11. The indication lights alarms automatically when trouble occurs.
12. Various wrapping material can be used.
MAIN PARAMETERS:
ITEMS | GD300 |
Packing object | All kinds of bearings |
Object width | ≤300mm |
Object ID | 300-500mm |
Object OD | 700-1200mm |
Packing material | Compound knit tape/compound paper,etc W:90mm ID:54mm OD:500mm |
Roller speed | About 2.5m/min |
Rotating speed | 5060r/min |
Roller height | About 750mm |
Roller loading | About 1500kg |
Power output | About 2.2kw |
Power voltage | 380V, 3phase 4 wires |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Problem | Possible cause & Solutions |
The complete machine doesn’t work. | 1. Check external power supply and power switch. |
The ring doesn’t rotate or it rotates abnormally. | 1. Check the wearing of friction wheel. If it is seriously worn, new friction wheel shall be replaced. |
The object turns difficultly or shakes seriously. | Adjust the up and down protective rollers to a proper distance. |
Packaging tape is too loose. | 1. Adjust the height of the ring. |
The ring and roller don’t work. | 1. Check power supply. |
The overlapping degree of packaging tape cannot be adjusted. | 1. Adjust the parameter values of “ring speed” and “roller speed” converter in the electrical cabinet. |
The ring don’t run smoothly. | 1. Confirm the ring running direction. 2. Adjust the position of the friction wheel to make its pressure to the ring equal. |
