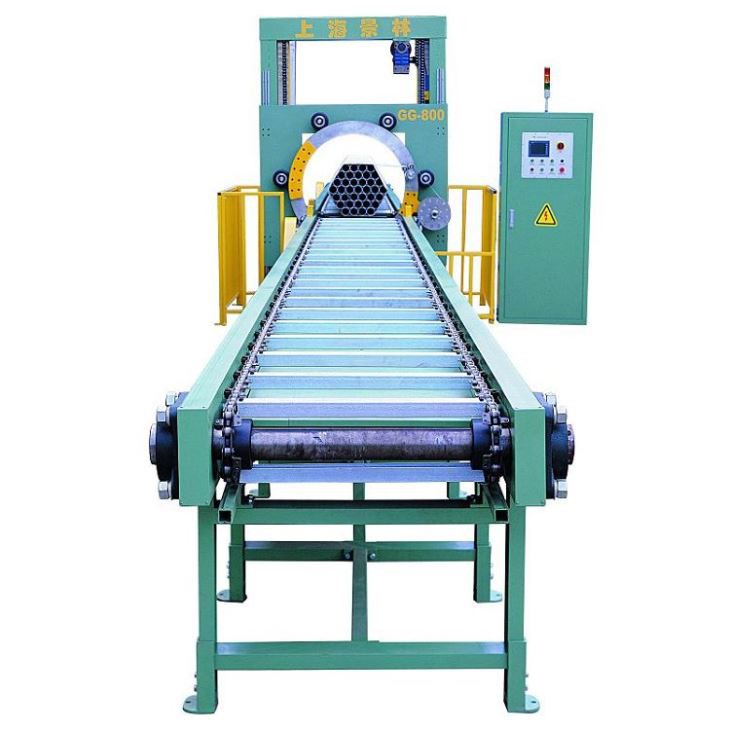

Tube Packing Machine
The tube packing machine is widely used for wrapping steel tube, plastic tube, welding tube, seamless pipe, steel pipe, copper tube, aluminum tube, aluminum profile, bars, sheets and other long-shaped products in single or in bundle. The tube can be round, square or rectangular shape. The wrapped tube is well sealed and decorated for protection and transportation.
Description
TUBE PACKING MACHINE
MACHINE APPLICATION:
The tube packing machine is widely used for wrapping steel tube, plastic tube, welding tube, seamless pipe, steel pipe, copper tube, aluminum tube, aluminum profile, bars, sheets and other long-shaped products in single or in bundle. The tube can be round, square or rectangular shape. The wrapped tube is well sealed and decorated for protection and transportation.
BASIC FEATURES:
*Adopt PLC control system.
*Double-ring & double-rub wheel make working safe, stable & energetic.
*Friction structure adopted for safe, steady and strong operation
*Automatic object tracking and precise positioning.
*Special tension adjust system designed for uniform tension control of wrapping tape.
*Soft start and soft stop ensure safe operation.
*Independent control cabinet, for convenient operation and maintenance.
*The conveyor can be galvanized roller, rubber coated roller, belt conveyor& etc.
*The conveyor length can be customized according needs.
*Mechanical hand for automatic packing material feeding and cutting, safe and efficient(optional).
*Two different material can be wrapped synchronously (optional).
*HMI screen operation (optional).
MAIN PARAMETERS:
Items | GG500 | GG800 |
Section diameter of the tube bundle | ≤500mm | ≤800mm |
Tube length | Not limited | Not limited |
Conveyor length | 1000-6000mm | 1000-6000mm |
Conveying speed | About 1-10m/min | About 1-10m/min |
Rotating speed | 20-90r/min | About 70r/min |
Overlap scope | About 10%-90% | About 10%-90% |
Power output | About 2.0kw | About 2.4kw |
Power voltage | 380V/3phase/ 50Hz | 380V/ 3phase/50Hz |
Material | Compound paper tape/knit tape/anti-rust tape/waterproof tape/ stretch film | Compound paper tape/knit tape/anti-rust tape/waterproof tape/ stretch film |
Material size | width:≤250mm Max OD:400mm ID:55mm | width:≤250mm Max OD:400mm ID:55mm |
Packing effect: Product surface is smooth and even.
Working hours of the machine: Effective working hour per year:7200h.
Environmental protection:
Noise control of the equipment environment：
It must meet with the national requirements for noise control.
Emission standard:
Emission of the waste gas and waste water meet with national requirements.
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
